02. ½ºÀ§Ä¡ (PoE) > ¨ë 24Æ÷Æ® > HP [JG091A] 5120-24G-HPoE SI, 10/100/1000 24Æ÷Æ® + 4 SFP slot, POE+ 370watt

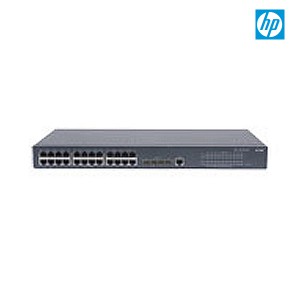

HP [JG091A] 5120-24G-HPoE SI, 10/100/1000 24Æ÷Æ® + 4 SFP slot, POE+ 370watt
ÆǸŰ¡°Ý : °¡°Ý ¹®ÀÇ
¼ö·® EA






Key selling points

¸Ç À§ ¸Ç À§
Quality of Service (QoS)
Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Powerful QoS feature: supports the following congestion actions: strict priority (SP) queuing, SDWRR, and SP+SDWRR
Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port basis
Management
Friendly port names: allow assignment of descriptive names to ports
Remote configuration and management: is available through a secure Web browser or a command-line interface (CLI)
Manager and operator privilege levels: enable read-only (operator) and read-write (manager) access on CLI and Web browser management interfaces
Command authorization: leverages RADIUS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit trail
Secure Web GUI: provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
Connectivity
Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
Flow control: using standard IEEE 802.3x, it provides back pressure to reduce congestion in heavy traffic situations
Jumbo packet support: supports up to 10k byte frame size to improve performance of large data transfers
High-density port connectivity: provides up to 48 fixed 10/100/1000BASE-T ports in an entry-level static Layer 3 switch
Ethernet OAM: provides a Layer 2 link performance and fault detection monitoring tool, which reduces failover and network convergence times
Performance
Nonblocking architecture: up to 104 Gbps nonblocking switching fabric provides wire-speed switching with up to 77.4 million pps throughput
Hardware-based wire-speed access control lists (ACLs): feature-rich ACL implementation (TCAM based) helps ensure high levels of security and ease of administration without impacting network performance
Resiliency and high availability
Separate data and control paths: increases security and performance
Spanning Tree/MSTP, RSTP: provides redundant links while preventing network loops
IEEE 802.3ad Link Aggregation Control Protocol (LACP): supports up to 26 trunks, each with 8 links per trunk; supports static or dynamic groups
Smart link: allows 50 ms failover between links
Intelligent Resilient Framework (IRF): creates virtual resilient switching fabrics, where two or more switches perform as a single Layer 2 switch and Layer 3 router; switches do not have to be co-located and can be part of a disaster-recovery system; servers or switches can be attached using standard LACP for automatic load balancing and high availability; simplifies network operation by eliminating the complexity of Spanning Tree Protocol, Equal-Cost Multipath (ECMP), or VRRP
Layer 2 switching
8K MAC address table: provides access to many Layer 2 devices
VLAN support and tagging: support IEEE 802.1Q with 4,094 simultaneous VLAN IDs
IP multicast snooping: automatically prevents flooding of IP multicast traffic
Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) protocol snooping: effectively control and manage the flooding of multicast packets in a Layer 2 network
Layer 3 services
Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses
Dynamic Host Configuration Protocol (DHCP): simplifies the management of large IP networks; supports client; DHCP Relay enables DHCP operation across subnets
Loopback interface address: defines an address in Routing Information Protocol (RIP) and OSPF that can always be reachable, improving diagnostic capability

Warranty

¸Ç À§ ¸Ç À§
Lifetime (Return to HP/Dealer - Unit Exchange; Next Day Response)

UNSPSC code

¸Ç À§ ¸Ç À§
43222612


±â¼ú »ç¾ç

±¸¼º
Routing table size 32 entries
¿¬°á
Routing/switching capacity 56 Gbps
³×Æ®¿öÅ·
General protocols IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.1X PAE; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 951 BOOTP; RFC 1350 TFTP Protocol (revision 2); RFC 2131 DHCP; RFC 2865 Remote Authentication Dial In User Service (RADIUS); RFC 2866 RADIUS Accounting
Network management IEEE 802.1AB Link Layer Discovery Protocol (LLDP); ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3
Latency 1000 Mb Latency: < 3 µs
MIBs IEEE8021-PAE-MIB; IEEE8023-LAG-MIB; RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 2011 SNMPv2 MIB for IP; RFC 2013 SNMPv2 MIB for UDP; RFC 2233 Interface MIB; RFC 2571 SNMP Framework MIB; RFC 2572 SNMP-MPD MIB; RFC 2573 SNMP-Target MIB; RFC 2618 RADIUS Authentication Client MIB; RFC 2620 RADIUS Accounting Client MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2819 RMON MIB; RFC 2925 Ping MIB; RFC 3414 SNMP-User based-SM MIB; RFC 3415 SNMP-View based-ACM MIB; RFC 3418 MIB for SNMPv3; RFC 4133 Entity MIB (Version 3); LLDP-EXT-DOT1-MIB; LLDP-EXT-DOT3-MIB; LLDP-MIB
Memory and processor storage: 128 MB flash, 128 MB SDRAM, packet buffer size: 0.5 MB
Management features IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager
¼º´É
Throughput 41.7 million pps
Æ÷Æ®
Ports 24 RJ-45 autosensing 10/100/1000 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+), Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 fixed Gigabit Ethernet SFP ports; 1 RJ-45 serial console port
Àü·Â
Input voltage 100-240 VAC
Input frequency 50/60 Hz
Power With AC input, the Max power consumption is 523W (370W for PoE)
Power supply PoE 720 W
Power consumption 832 W (maximum)
·¢
Mounting Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
½Ã½ºÅÛ
Form factor 1U height

ȣȯ¼º Á¤º¸

¸Ç À§ ¸Ç À§
Ç¥ÁØ
Electromagnetic compatibility FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Safety UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

ȯ°æ Á¤º¸

¸Ç À§ ¸Ç À§
¹æ¿­
Heat dissipation 539 BTU/hr (568.65 kJ/hr)
±âŸ
ECO quick links bullet 03 URL statement HP & the Environment
ECO quick links bullet 02 URL statement Carbon Footprint Calculator
ECO quick links bullet 03 URL http://hp.com/environment
ECO quick links bullet 01 URL statement Recycling and Reuse Options
ECO quick links bullet 01 URL http://www.hp.com/hpinfo/globalcitizenship/environment/recycling/unwanted-hardware.html
ECO quick links bullet 02 URL http://h71028.www7.hp.com/enterprise/us/en/solutions/hp-carbon-footprint-calculator.html?jumpid=re_r138_eco_home_carbon_footprint_learn_more
»ó´ë ½Àµµ
Storage humidity 5 to 95% (noncondensing)
Operating humidity range 10 to 90% (noncondensing)
¿Âµµ
Storage temperature range -40 to 158¡ÆF
Operating temperature range 0 to 45¡ÆC
Storage temperature range -40 to 70¡ÆC
Operating temperature range 32 to 113¡ÆF

¹°¸®Àû Å©±â

¸Ç À§ ¸Ç À§
Dimensions
Dimensions (W x D x H) 42 x 44.0 x 4.36 cm
Dimensions (W x D x H) 16.54 x 17.32 x 1.72 in.
Weights
Weight 15.43 lb.
Weight 7 kg

Warranty

¸Ç À§ ¸Ç À§
Lifetime (Return to HP/Dealer - Unit Exchange; Next Day Response)
